AMPCOM M.2 NVMe SSD Express Card M Key to PCIE 3.0 X4 Adapter External SSD Support 230-2280 Size M.2 FULL SPEED

$5.49$9.32

Brand Name: AMPCOM
Certification: RoHS
Origin: CN(Origin)
Package: Yes
Model Number: SK4
Type: Add On Cards
Interface Type: PCI
Interface Type: PCI Express

China
China
Russian Federation
Russian Federation
SPAIN
SPAIN
Clear

Description

Recommended For You

AMPCOM M.2 NVME to PCI Express 3.0 x4 Adapter Card, 32Gbps SSD Adapter Support 2280 2260 2242 2230 Converter to Desktop PCI Express Compatible with PCI-E X4 X8 X16

  • With this AMPCOM M.2 NVMe SSD PCI-E 3.0 X4 Adapter, you could add a NVME SSD on your motherboard without M.2 slot.

  • With the channel of PCI-E 3.0 X4, the speed will enhanced upto 40Gbps, 3200+ MB/s random Read and 1500+ MB/s Write (Max), improve computer performance

  • Multi-layer PCBA, Multi-layer protection: Overcurrent protection,Overvoltage protection,Short circuit protection,EMI (Electromagnetic Interference) protection, Heatsink layer for overheat protection . Maximum protection of M.2 NVMe SSD from electrical signal interference.

  • No driver required for Win10, plug and play, supports NVMe SSD, such as Samsung 970 EVO/950Pro/960EVO/XP941/PM951/PM961/SM951/SM961, Intel SSD6/7 Plextor M6e Series, Kingston HyperX Predator M.2 SSD and so on.

  • Package include: 1* Adapter, 1* Profile, 1* Cabinet screw, 1* SSD screw, 1* Screw driver

We want to make sure you have a better using experiences using AMPCOM Products. We are always ready and happy to assist.

Package content:

  • M.2 to PCIe Adapter ✖ 1

  • Profile ✖ 1

  • Cabinet screw ✖ 1

  • SSD screw ✖ 1

  • Screw driver ✖ 1

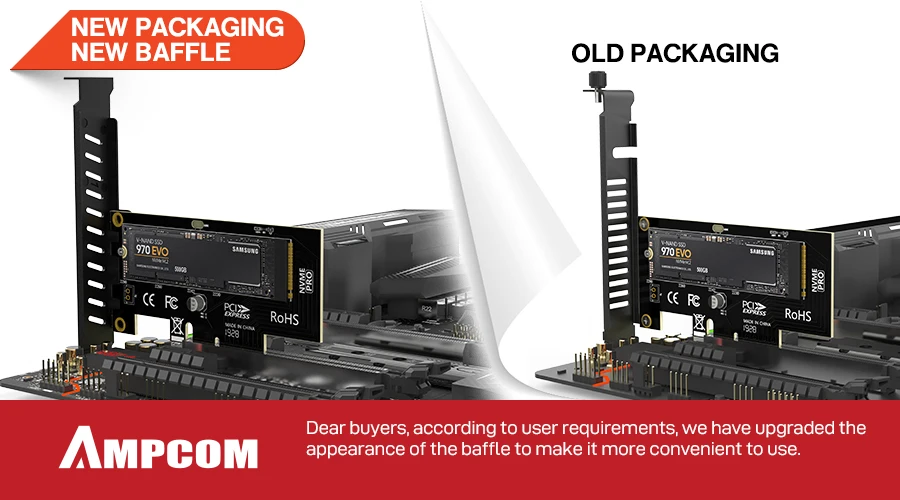

This AMPCOM PCIe 3.0 x4 Host Adapter for M.2 NGFF PCIe SSD allows the M.2 (PCIe) to be installed onto the standard PCI Express on the motherboard.

Widely Compatible,supportsWindows 10/8、Windows Server 2012 R2、Linux、Fedora、SUSE、Ubuntu、Red Hat(no driver required)and install the NVMe driver for Win7 and Windows Server 2008 R2

Features:

  • Compliant with PCIE 3.0 X4 40Gbps full speed support

  • Movable M.2 NVMe stand-off and multiple plated-holes supports type 22110, 2280, 2260 and 2242 SSD

  • Supports dual-sided SSD module 1.5mm component height on the top and bottom side

  • This adapter is only for ‘M’ key M.2 PCIe SSD, doesn’t support SATA connection

  • operating temperature range: -40 – 85 C / M.2 PCIe SSD power from PCIe bus slot 3.3V

  • Led indicators for power and access

Safe and stable transmission:It built with a high quality capacitor and gold-plated interface to ensure information security and stable transmission. The vented design on immersion gold PCB enhance heat dissipation of SSD, Come with low profile bracket, best choice for 2U case.

Multi-layer PCBA, Multi-layer protection: Overcurrent protection,Overvoltage protection,Short circuit protection,EMI (Electromagnetic Interference) protection, Heatsink layer for overheat protection .

Samsung950PRO/960EVO/PM951/PM961/SM951/SM961/970EVO/970PRO.——-Intel Optane SSD 800P Series, Intel SSD 760p Series, Intel SSD 660p Series, Intel SSD 600p Series.———-Toshiba OCZ RD400/Plextor M8PEG M6E/Kingston KC1000

Product description

(Note: Win7 and Windows Server 2008 R2 are not compatible with NVME SSD)<>
This PCIe 3.0 x4 Host Adapter for M.2 NGFF PCIe SSD allows the M.2 (PCIe) to be installed onto the standard PCI Express on motherboard .

Features:<>

Convert M.2 NVME PCIe based SSD to work on motherboard PCIe x4 3.0 slot

PCI Express 3.0 x4 Lane Host adapter

Supports PCIe Gen3 and PCIe Gen2 M.2 NVME SSD

Movable M.2 NVMe stand-off and multiple plated-holes supports type 22110, 2280, 2260 and 2242 SSD

Supports PCIe 1.0, PCIe 2.0 and PCIe 3.0 motherboard

Supports dual-sided SSD module 1.5mm component height on the top and bottom side

Compliant with 40Gbps PCI Express 3.0

Led indicators for power and access

Transparent to the operating system and no driver required

Supports any OS like Windows, Mac and Linux

Supports industrial operating temperature range: -40 – 85 C

M.2 PCIe SSD power from PCIe bus slot 3.3V

This Adapter doesn’t support SATA connection
Note: this adapter is only for ‘M’ key M.2 PCIe SSD

Product information

Package Dimensions

8.3 x 5.9 x 1.2 inches

Item Weight

1.76 ounces

Shipping Weight

3.52 ounces

Manufacturer

AMPCOM

Support Type

NVME

Item model number

AMPJYSK4

Additional information

Weight 0.1 kg
Dimensions 15 × 10 × 2 cm
Ships From

China, Russian Federation, SPAIN

Brand Name

AMPCOM

Origin

CN(Origin)

Type

Add On Cards

Package

Yes

Model Number

SK4

Interface Type

PCI Express

Certification

RoHS
